By Lauren Nagel, last updated 17-02-2021

Kendy Edmonds and Dr. Blake Stringer of Kent State University explore the scalability of current sUAS propulsion methods in their fascinating research paper, Unmanned VTOL Propulsion Research – Scalability of Quadcopter Rotor-Motor Configuration Outside the sUAS Regime

The maneuverability of drones and their ability to operate in challenging terrain makes them a great option for institutions like the military or corporations like UPS and Amazon. The advantages of increasing the size of a quadcopter are obvious: larger payloads, longer range, longer hover time, etc. However, large multi-rotors are more expensive to test and build, so it is tempting to test small scale versions first. While this is a valid strategy, designers have to be aware of the limitations of their models.

One of the major issues explored in the paper is the transient response of variable-speed rotor-motor configurations: how does the increased inertia affect the response time of larger systems?

They point to differences in power and maneuverability between variable speed, fixed pitch drones and constant speed, variable pitch helicopters. A quadcopter drone requires 27% more power during hovering and maneuvers than a helicopter with the same payload carrying capacity (figure 1). From this analysis they draw two conclusions: “(1) As the size of the aircraft grows, increasing rotor diameter assists in maintaining manageable power requirements. (2) As the size of the rotors increases, so do the power requirements for spinning the rotors to overcome inertia and blade profile drag.”

Figure 1: Hover-power requirements versus weight and disk-loading in hp (left) and kW(right)

In order to further investigate the scalability of variable speed rotors, the researchers performed several tests to measure the transient response of different rotor configurations using the Series 1780 test stand (figure 2). Five motors were tested: Turnigy RotoMax 150cc, KDE Direct 10218XF105 (Mega), T-Motor P80 120kv, KDE Direct 7215XF-135 (KDE), and KDE Direct 4215XF465 (Mini), as well as three different rotors: a carbon fiber 3-blade propeller with a diameter of 30.5” and a pitch of 9.7” by KDE Direct, a carbon fiber 2-blade propeller with a diameter and pitch of 27” and 8.8” by Falcon, and a carbon fiber 2 blade propeller with a diameter and pitch of 15” and 5.5”, respectively, manufactured by T-Motor.

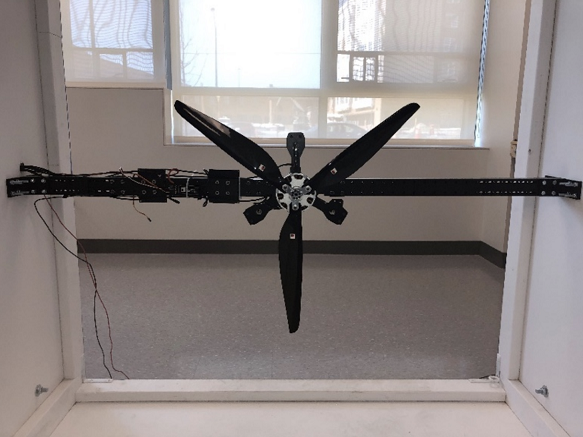

Series 1780 test stand in experimental configuration

Figure 2: The experimental set-up with the Series 1780 test stand

The results of the transient response experiments with all the different rotor combinations are shown in figure 3. Interestingly, they note that, “There is significantly more variability in the response of each rotor-motor configuration than was expected”, highlighting the importance of propulsion testing in system design. From this data they draw two main conclusions: 1) “The coast-down process is more sensitive to rotor-motor size than the ramp-up process”, 2) “The influence of all input factors should be further studied to determine the primary input variables to the transient response. The range of input values should be as wide as possible.”

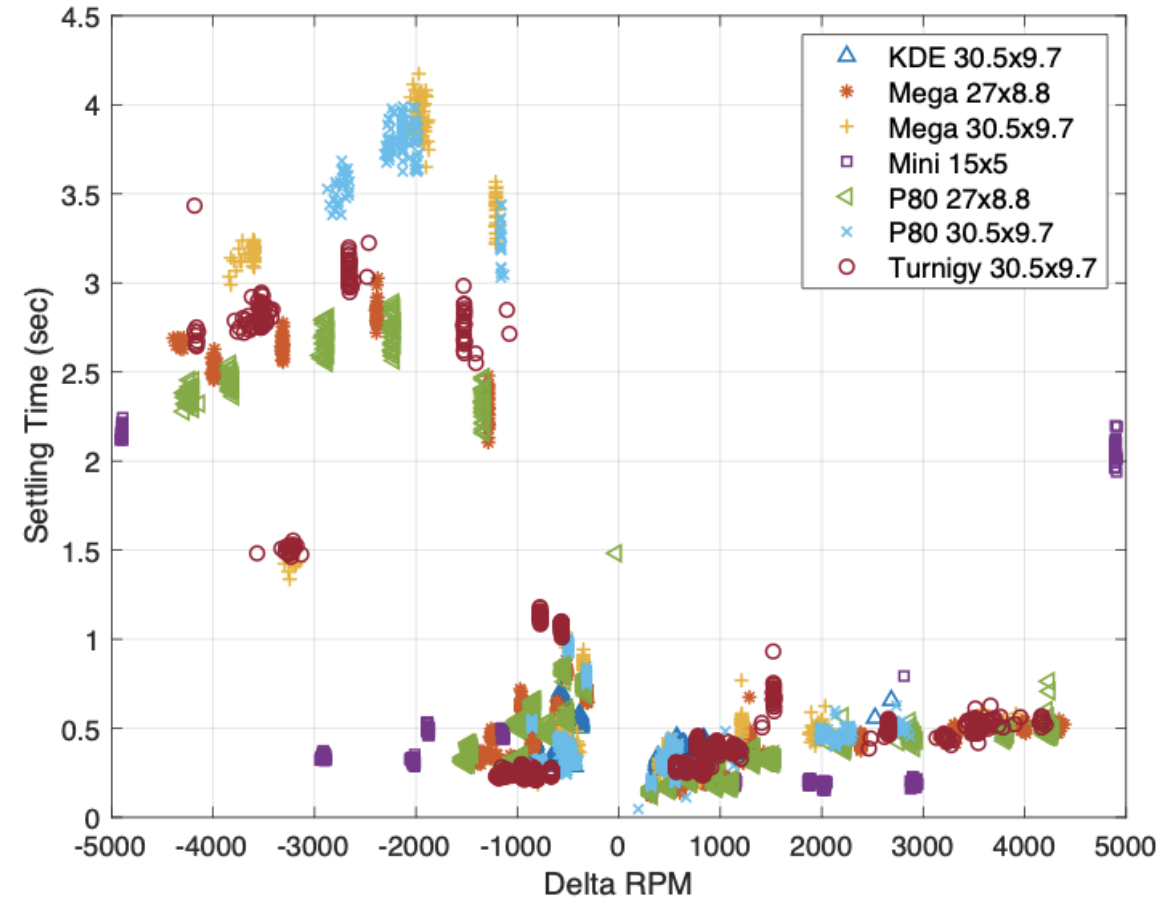

Results of transient response tests

Figure 3: Settling time of all motors plotted against change in RPM

A third and unexpected conclusion drawn from the study relates to thermodynamics, 3) “Temperature and thermal management are important considerations for variable-speed motors, especially if they are growing and have no cooling other than the rotor windstream.” After one motor in the experiment began smoking, they performed follow-up tests and were able to characterize the temperature spike of the motors after the propeller stopped and ceased cooling.

This points to the need for a thermal management strategy in drones carrying larger motors, an important design consideration for manufacturers. When scaling up a motor, the area available for thermal dissipation increases with the square of the size, while the mass of copper increases by the cube of the size.

This research is an excellent resource for manufacturers to consider when designing large drones. Read the full paper for more details on their testing process.
