RCbenchmark Thrust Stand

Test your UAV propulsion system

RCbenchmark provide a range of thrust stands that allow to test brushless motors, propellers, ESCs and battery for any UAV development.

Our solution is composed of the thrust stand which is controled with the RCbenchmark software. The data-acquisition is done with the software and you can also automate your tests with it.

Measured Data Derived Data
Thrust Mechanical power
Torque Electrical power
Current Propeller efficiency
Voltage Motor efficiency
RPM System efficiency
Leave your message*:
By submitting the form you will be subscribed to our newsletter .
Series 1780 single motor

Series 1780 Single-Motor

The Series 1780 thrust stand single-motor allows to measure up to 75 kgf of thrust and 48 Nm of torque for a single propeller. It allows to characterize and optimize single-rotor UAV propulsion system.

Thrust ratings Torque ratings Electrical Power ratings
25 kgf 12 Nm 60V /100A
40 kgf 18 Nm 60V / 150A
75 kgf 48 Nm  100V / 500A

Series 1780 single motor

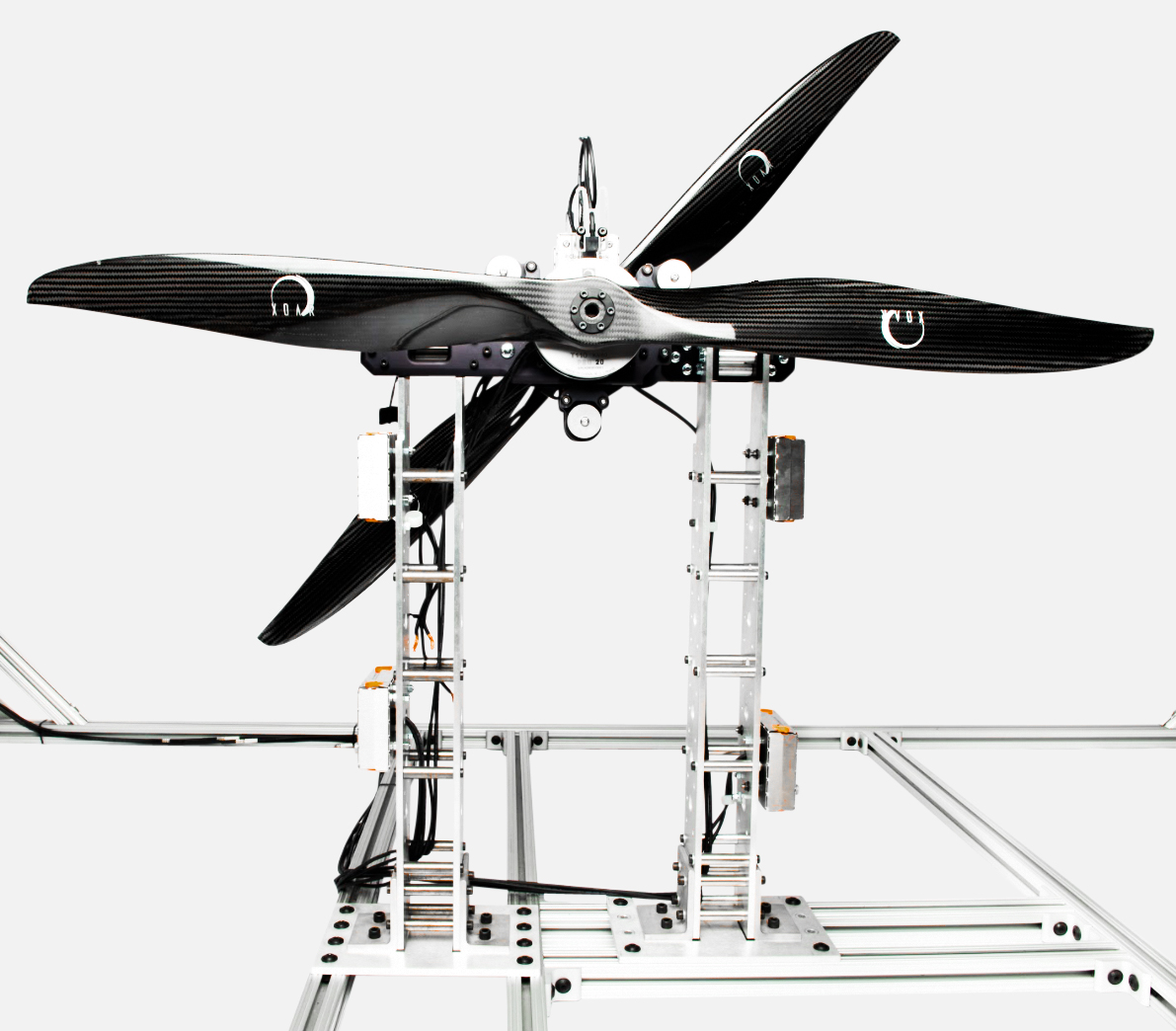

Series 1780 Coaxial

The Series 1780 Coaxial allows to measure up to 150 kgf of thrust and 96 Nm of torque produced by two propellers simultaneoulsy. It allows to characterize and optimize coaxial-rotor UAV propulsion system.

Thrust ratings Torque ratings Electrical Power ratings
50 kgf 24 Nm 60V /100A
80 kgf 36 Nm 60V / 150A
150 kgf 96 Nm 100V / 500A

Series 1780 single motor

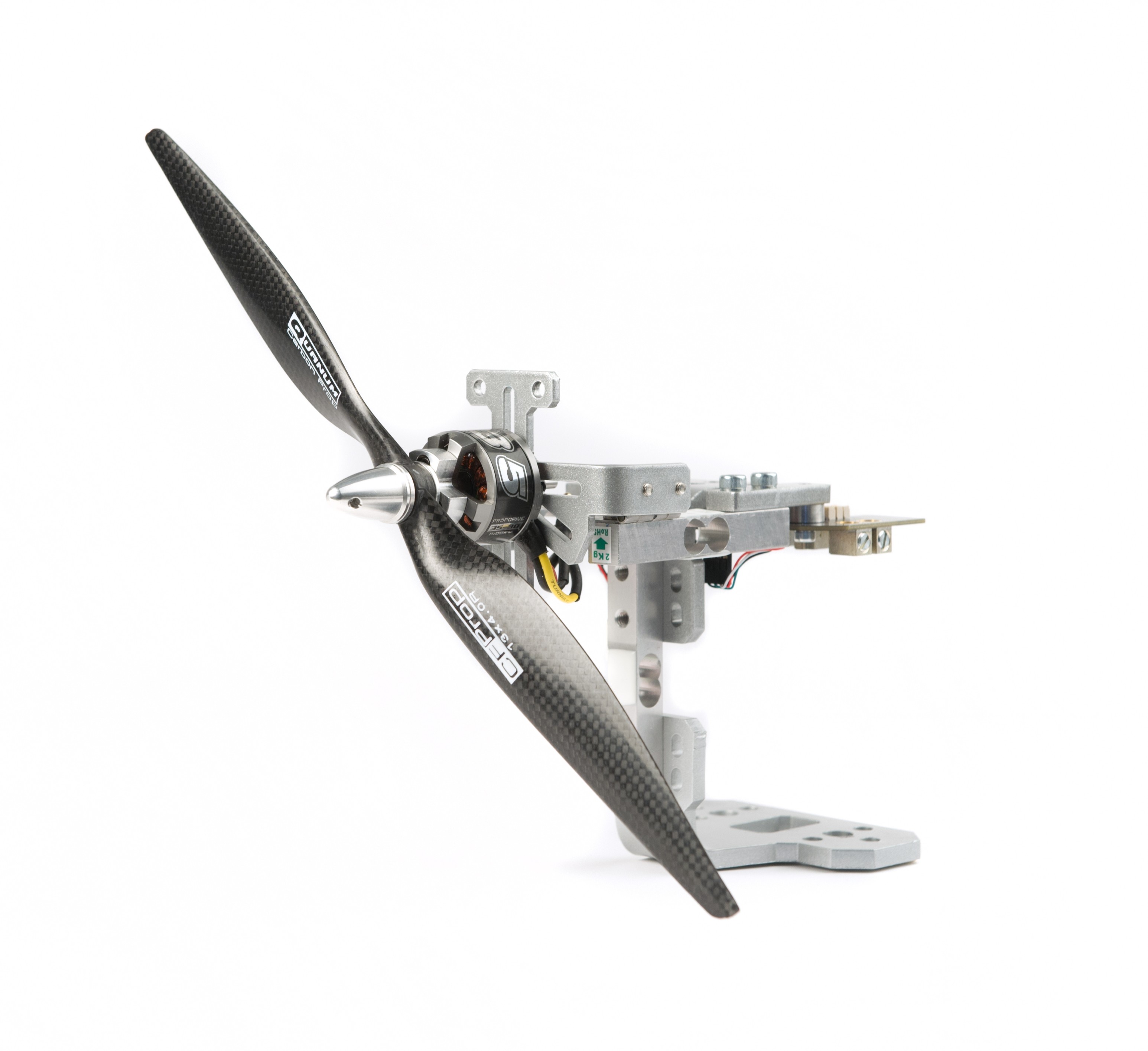

Series 1580/1585

The Series 1580 and 1585 allows to measure up to 5 kgf of thrust and 1.5 Nm of torque. It allows to optimize propulsion system for small to medium size UAVs. The Series 1585 has higher measurement rate for more precise optimization.

Series 1580 Series 1585
5 kgf of thrust 5 kgf of thrust
1.5 Nm of torque 1.5 Nm of torque
8 Hz measurement rate 80 Hz measurement rate
