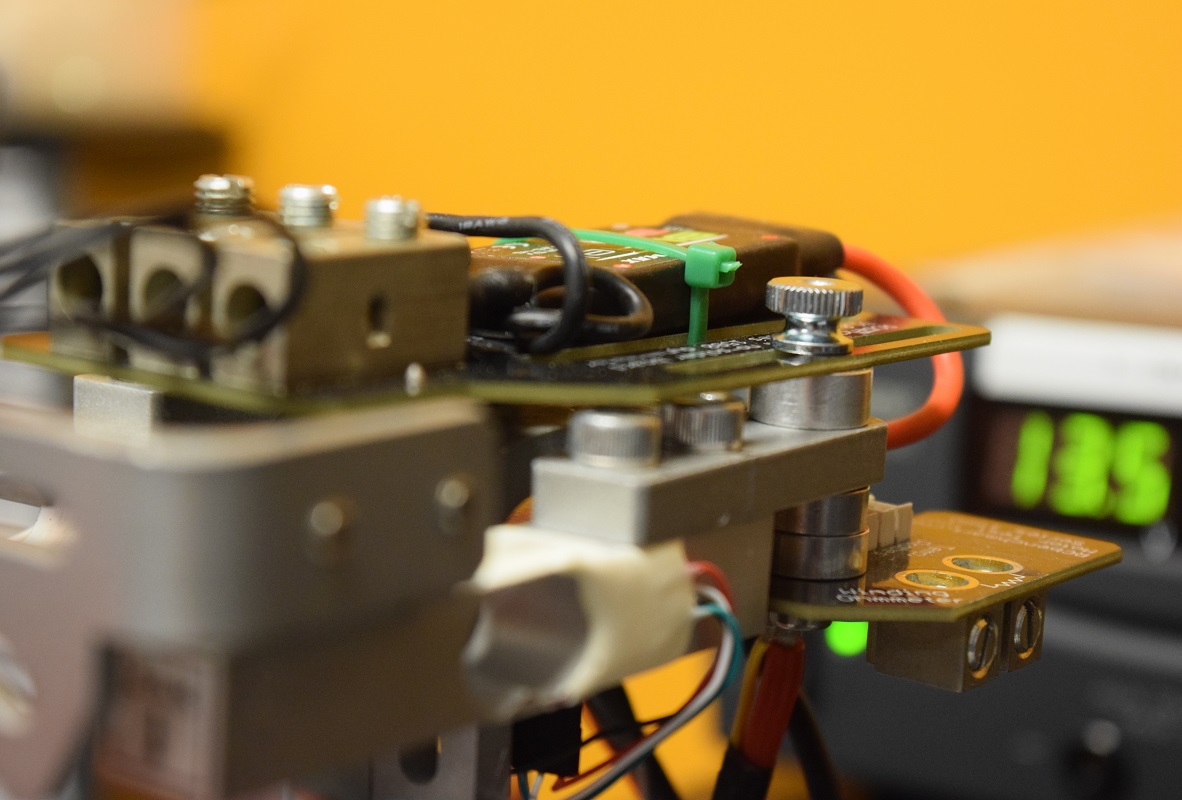

Series 1580/1585 Thrust Stand
Professional tool for medium size drone
A premium thrust stand which measures all you need to know about your propulsion system. Record thrust, torque, voltage, current, motor rotation speed, and vibration.
The Series 1585 is a new and improved version of the
Series 1580. It has a better dynamic response, a higher power capability, and a better electrical noise immunity for cleaner measurements.
It comes with a USB interface and software for automated control and data-logging.
Measure Propeller and Motor Efficiency
Maxime flight time and performance
The Series 1580/1585 measures torque and derives from it the efficiency of your motor. It provides professional characterization and helps you to find the optimal propulsion components in your project.
| Series 1580 | Series 1585 | |
|---|---|---|
| Max. Thrust | 5 kgf | 5 kgf |
| Max. Torque | 1.5 Nm | 1.5 Nm |
| Max. Voltage | 35 V | 50 V |
| Max. Current (continuous) | 40 A | 55 A |
| Max. Force Measurement Rate | 8 Hz | Up to 80 Hz |
Advanced Tool and Great Software
By designers, for designers
Quadcopters
Increase flight time and reliability.
Helicopters
Test flight modes quickly: control the swash plate with built in servo outputs.
Cars and Robots
Increase range capability of small vehicles using motors generating up to 1.5 Nm.
Fixed-Wings
Optimize the flight time, payload and climb rate.
A Turn-Key Solution for Drone Designers
DAQ system, hardware and software included
With everything included in the box, you don't need to build or use multiple tools for your tests.
Everything is included in the Series 1580/1585 bundle: the data-acquisition circuit, the custom made load cells and the holding
structure.
It even includes a torque and thrust calibration kit with a precision calibration weight, ensuring your measurements are accurate.
.jpg)
Adaptable and Easy to Use
Fits any type of brushless motors
The Series 1580/1585 thrust stand comes with a built-in precision ohmmeter for motor winding resistance measurement, and it has expansion ports to connect additional sensors.
The motor mounting plate provided in the kit allows to test any kind of small to medium size brushless motors.
Multiple Accessories to Improve Electric Propulsion Performance
Simplify your tests and obtain more data
No-Solder Board
The no-solder board lets you quickly swap motors without soldering bullet connectors.
Temperature Probe
The Series 1580/1585 supports up to three probes to measure temperature from -10°C to +120°C.
Air-Speed Probe
A differential pressure sensor fully integrated with our software to facilitate wind tunnel testing.
Optical RPM Probe
Use the optical RPM probe for low Kv motors (<700) or high rotation speed tests (>200,000 eRPM).
Included, Powerful, and User-Friendly Software
Open-source testing software
Control your motor manually or automatically. Set safety cutoffs to reduce the chance of damage during intensive tests. Get real-time feedback with live plots and automate tests with customizable scripts.
